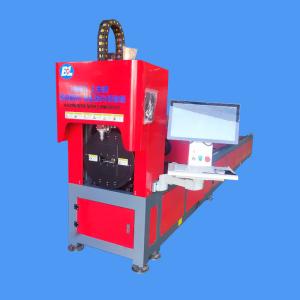

BNL Serials High Speed 3D Laser Pipe Cutting Machine ( Side Mounted)
FEATURES:
Drawing-free pipe cutting system: ordinary masters can quickly get started, eliminating the production method of drawing traditional three-dimensional drawings for conventional pipes and hole types.
Bus control system: The entire series adopts a bus control system, multi-axis linkage, to achieve frog jumping, flying cutting and other processes, and the efficiency is about 30% higher than the traditional pulse system.
Full-stroke chuck: automatic centering, multi-material and multi-shape pipes do not need to change the fixture.
The rear chuck automatically blows air, the claws are not easy to get stuck, and the pipe wall is cleaner.
Left/right model customization: more suitable for the placement of the factory, convenient for the master to operate and save floor space, saving manpower and space.
Many cutting types: square tubes, round tubes, elliptical tubes, channel steels, angle steels, I-beams and other pipes.
The operation control screen can be freely rotated at multiple angles, convenient for free control at multiple angles.
Technical Parameter:
| Model |
BNL12 |
BNL16 |
BNL23 |
| Laser power(W) |
1500-6000 |
1500-6000 |
1500-6000 |
| Processing range |
Round pipe: φ8mm-φ120mm |
Round pipe:φ10mm-φ160mm |
Round pipe:φ15mm-φ230mm |
| Rectangular tube: circumcircle ≤ φ120mm (in accordance with national standard GB/T6728-1986) |
Rectangular tube:circumcircle ≤φ160mm(in accordance with national standard GB/T6728-1986) |
Rectangular tube:circumcircle ≤φ230mm(in accordance with national standard GB/T6728-1986) |
| Special-shaped pipe: circumcircle ≤ φ120mm (please consult our technical personnel for details) |
Special-shaped pipe: circumcircle ≤ φ160mm (please consult our technical personnel for details) |
Special-shaped pipe: circumcircle ≤ φ230mm (please consult our technical personnel for details) |
| The quality of pipes shall meet the requirements of GB/T17395-1998. For special-shaped pipes, please consult the technical personnel of our company. |
| Weight of single pipe |
Maximum load of both chucks together 100 kg |
Maximum load of both chucks together 140 kg |
Maximum load of both chucks together 300 kg |
| Repeatpositioning accuracy |
±0.02 |
±0.02 |
±0.05 |
| Pipe length range(mm) |
≈6250 |
≈6250 |
≈6250 |
| Machine size(mm) |
L*W*H:8856*1365*2172 |
L*W*H:8856*1365*2172 |
L*W*H:8856*1365*2172 |
| Machine weight(T) |
≈3.5 |
≈3.5 |
≈3.5 |
| Maximum acceleration (G) |
≈1.6 |
≈1.3 |
≈1.0 |
| Tailings length(mm) |
≈60 |
≈80 |
≈100 |
